HHWST10, Horizontal Hot Water Storage Tanks

HHWST10

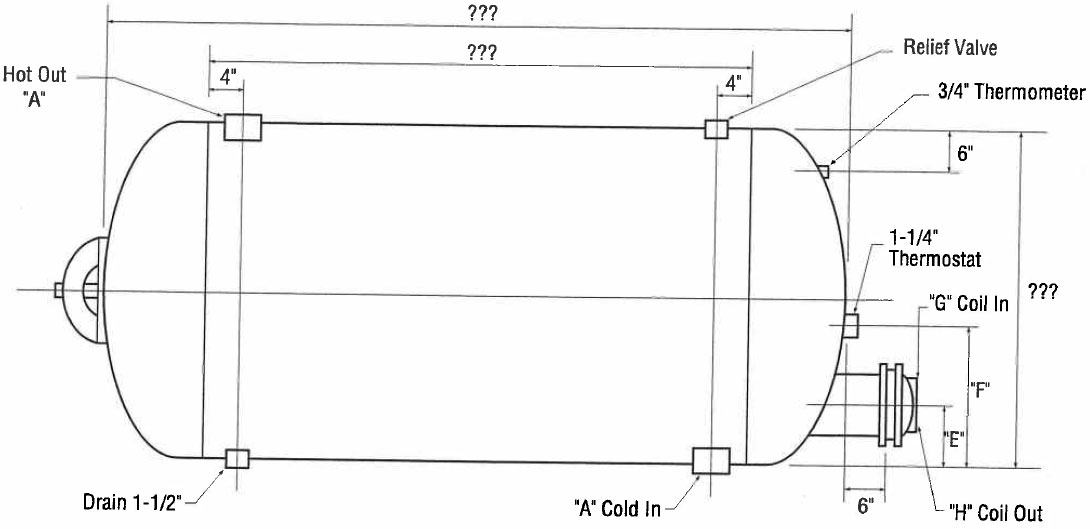

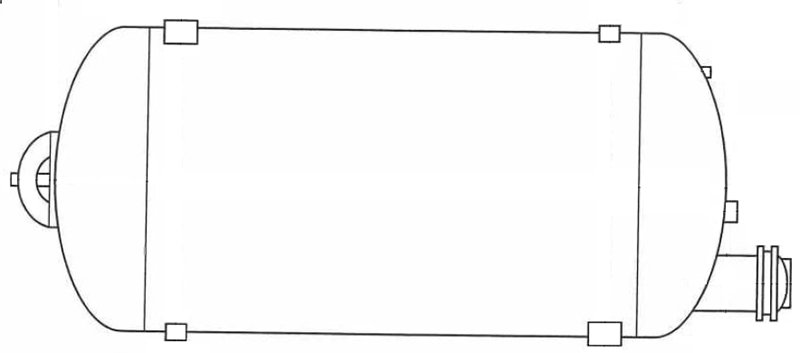

Manufactured in accordance with section VIII, ASME pressure vessel code. Fitting locations to be dimensioned from head and shell joint.

12 x 16 Manway Standards only on cement, phenolic lined, and all tanks 42″ diameter and over. All others to have inspection openings as required by ASME code.

Specifications
Coil Diameter 10
Tank Diameter 54-56 in
A Cold In
Dim. (E) 10
Dim. (F) 20
G Coil In
H Coil Out
