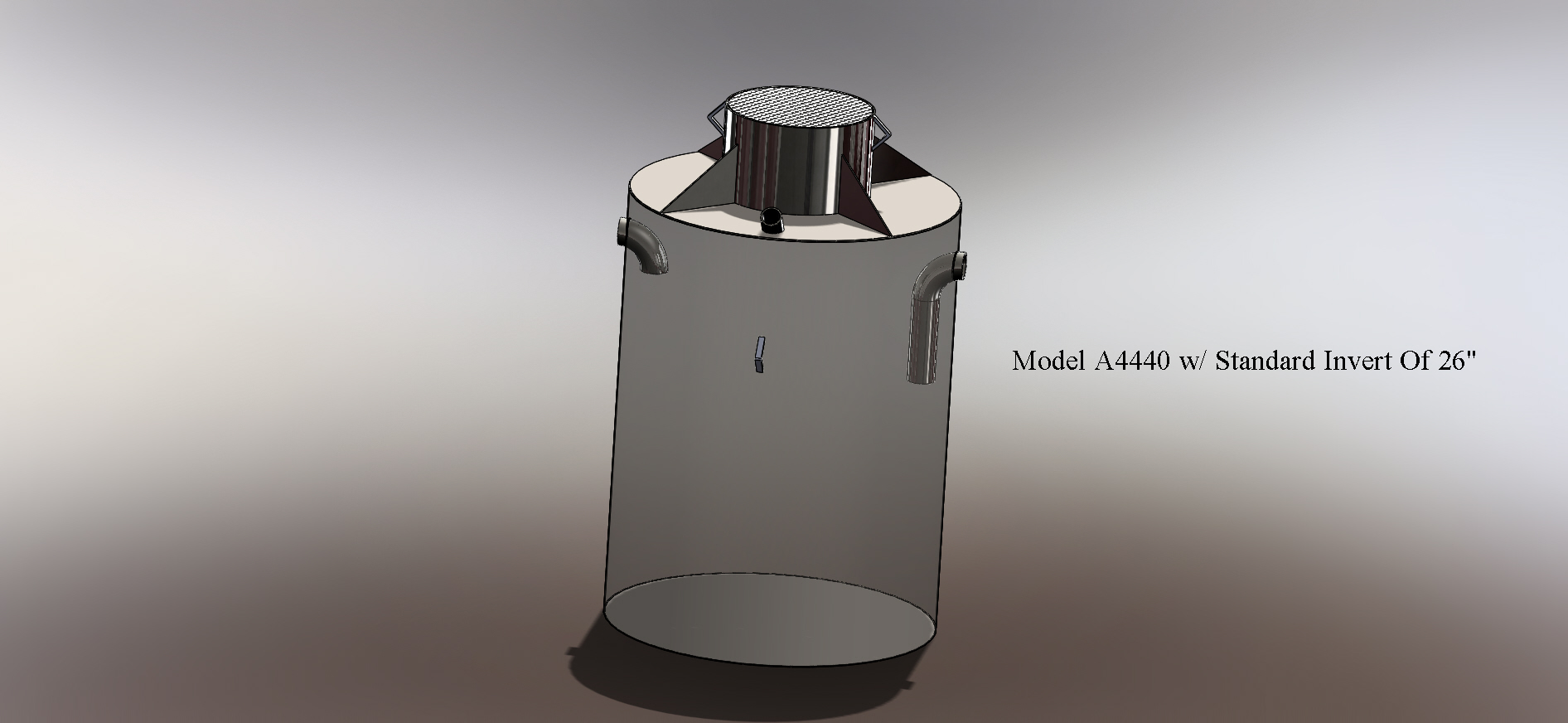

A4440-Stock

Inflammable MIDWEST Waste Traps – Model A4440

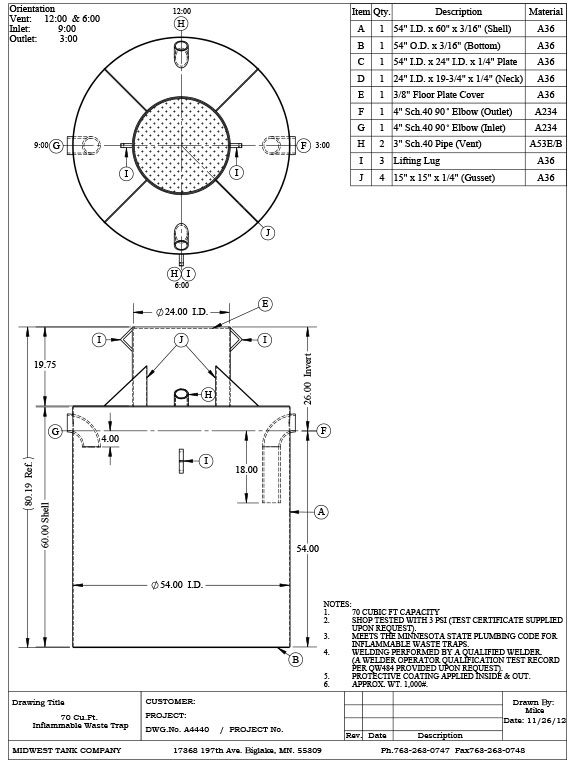

MODEL A4440 DRAWING QUOTE FORM
  • 70 Cubic ft. Capacity
  • Shop tested with 3-PSI
  • Welding performed by a qualified welder. (A welder operator
  • qualification test record per QW 484 provided.)
  • Corrosion resistant coating applied inside & out.
  • Cover rated for H-20 loading
  • Steel tank
  • Approx. wt. 900#
1/4″ Cone & Neck 3/16″ Shell & Bottom with Protective Coating 35 Cu.Ft. Capacity Shop tested with 3 PSI (test certificate supplied upon request) Meets the Minnesota State Plumbing Code for Inflammable Waste Traps Standard orientation Vent: 12:00 Inlet: 3:00 Outlet: 9:00
Specifications
Capacity 70 cu. ft.
Shop Tested with 3 psi
Floor Plate Cover Thickness 3/8 in
Floor Plate Cover Diameter 23 3/4 in
Pipe Vent Size 3 in
Tank Hole Size 3 in
Inlet & Outlet Pipe Size 4 in6 in
Approx. Weight 900 lbs
