Inflammable Midwest Waste Traps – Model A1006

Standard Inflammable Waste Trap

Midwest Tank Company is an industry leader in the manufacturing of inflammable waste traps.

Our Standard Inflammable

Waste Trap is Model No. A1006.

Standard Design

  • 4″ inlet and outlet
  • 3″ vent
  • Corrosion resistant Coating applied inside & out
  • 3/8″ checkered floor plate recessed cover (loose)
  • Cone designed for vehicle traffic
  • 3/16″ shell and bottom
  • 1/4″ cone and neck
  • 35 cu. ft. capacity
  • Shop tested with 3 PSI (test certificate supplied upon request)
  • Meets the Minnesota State Plumbing Code for Inflammable Waste Traps 2015
  • Welding performed by a qualified welder (A welding operator qualification test record per QW484 supplied upon request)
  • Cap unused vent
  • Approx. Wt. 800#

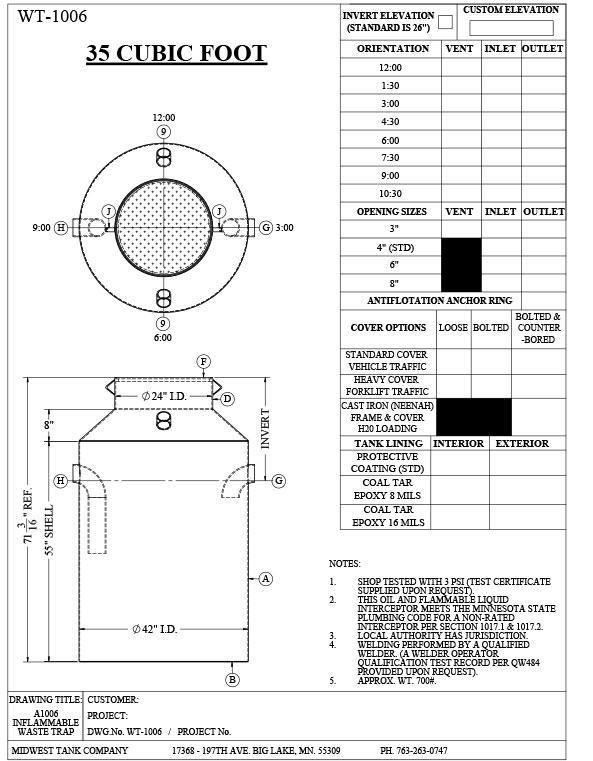

Items
Capacity 35 cu. ft.
Shop Tested with 3 psi
A Qty. 1, 42″ Dia. X 55″ x 3/16″ Shell, Matl. SA36
B Qty. 1, 42″ Dia. x 3/16″ Bottom, Matl. SA36
C Qty. 1, 42″ Dia. x 24″ Dia. x 1/4″ Cone, Matl. SA36
D Qty. 1, 24″ Dia. x 1/4″ Neck, Matl. SA36
E Qty. 1, 3/8″ Floor Plate Cover, Matl. SA36
F Qty. 2, 3″ Sch. 40 (Vent), Matl. SA53B
G Qty. 1, 4″ Sch. 40 90° Elbow (Inlet), Matl. SA234
H Qty. 1, 4″ Sch. 40 90° Elbow (Outlet), Matl. SA234
I Qty. 2, Lifting Lug, Matl. SA36
Approx. Weight 800 lbs
